| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | SINOTRUK HOWO N7 |
| Πιστοποίηση: | ISO/3C/BV/IFA/SGS |
| Αριθμό μοντέλου: | ZZ3257V384JB1 |
| Ποσότητα παραγγελίας min: | 1 μονάδα |
|---|---|
| Τιμή: | USD38000-USD42000/UNIT)negotiation |
| Συσκευασία λεπτομέρειες: | Γυμνό ή αποτρίχωση σε roro ή χύδην πλοίο |
| Χρόνος παράδοσης: | 25 εργάσιμες ημέρες μετά τη λήψη της προκαταβολής σας |
| Όροι πληρωμής: | L/C,T/T,Western Union |
| Δυνατότητα προσφοράς: | 3.000Units το μήνα |
| Μοντέλο: | ZZ3257V384JB1 | Τύπος μονάδας δίσκου: | 6x4 |
|---|---|---|---|
| Μηχανή: | WP12.400E201,400 HP (ευρώ ΙΙ) | Πηδαλιούχηση: | ZF8118 υδραυλική οδήγηση με τη βοήθεια δύναμης |
| Επισημαίνω: | SINOTRUK HOWO NX dump truck 6X4,LHD tipper dump truck with tarpaulin,dump truck warning light with warranty |
||

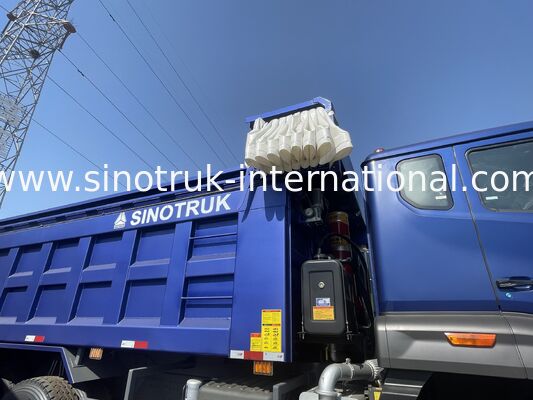

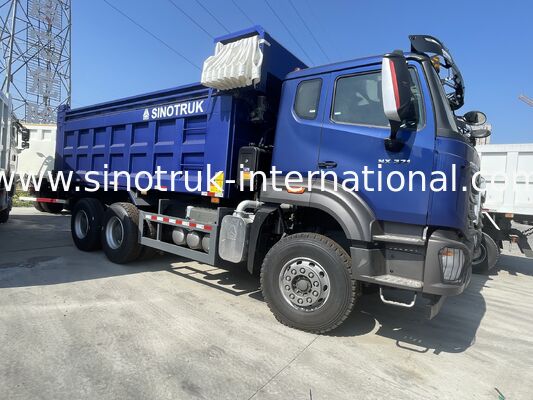

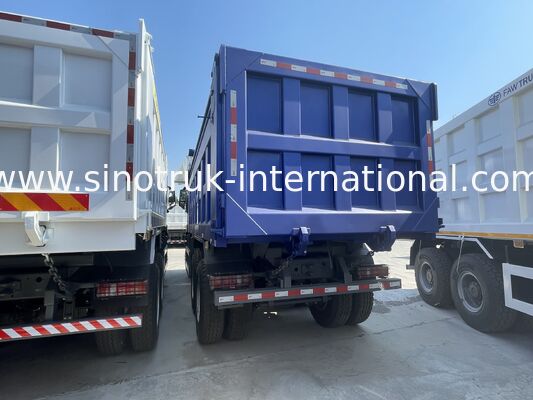

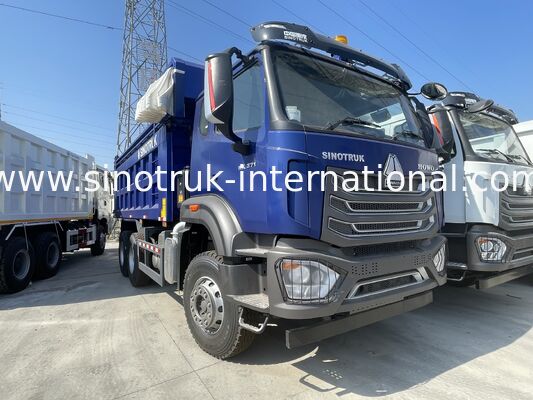

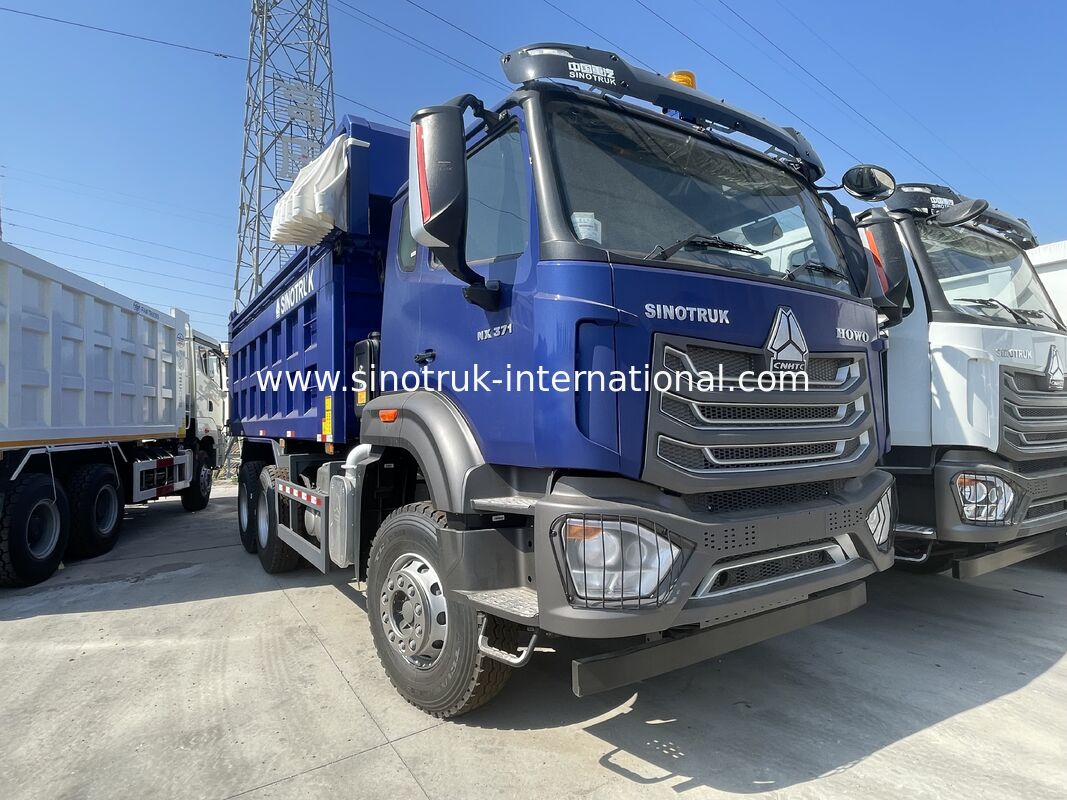

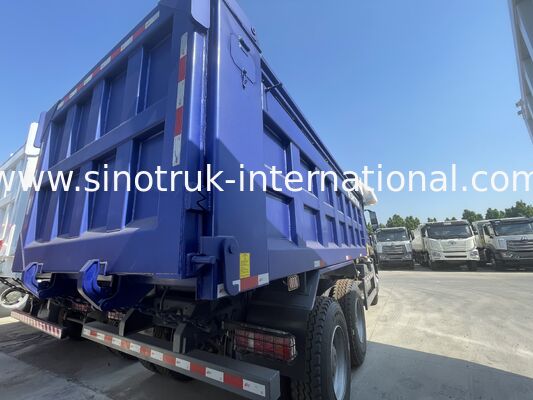

SINOTRUK HOWO Nx Cab Tipper Dump Truck LHD 6X4 A Warning Light With A Tarpaulin
Description:
Tipper Truck SINOTRUK HOWO N7 Front Lifting 30 - 40tons LHD 6X4 for Construction
This type product , with features of reliable structure , high loading capacity which can
load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide
acceplication.
The machine can meet the construction site, underground and other harsh environment requirements
Mining area. Which one will satisfy your rock mining and short haulage
Soil and engineering construction.
The HOW-N7 cab was jointly developed by Sinotruk and Giugiaro Design of Italy
The company. European style, bold and bold appearance, with
Smooth lines and the same quality of painting process as top cars, create a noble
And beautiful style; The large windshield brings a wider view, with electric
The rear view mirror is beautiful and practical
And convenient; Electric lifting system reduces labor intensity, easy to operate
Maintenance; The cab body and doors not only inherit from the HOWO 7 Series, but also conform
In line with Swedish regulations, but also reference to Sweden's improvement results
The truck. The technology is designed to remove the steering column in the event of an impact
Deformation and absorption make the HOWO N7 heavy duty truck safe for performance
Reach the world-class level; The interior of the cab reflects that
Humanized design concept, comfortable and convenient.
Specifications:
| SINOTRUK HOWO N7 Cab Tipper Dump Truck LHD 6X4 400HP Diamond silver | ||||
| Model | ZZ3257V384JB1 | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | N7 cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 8575×2496×3450(mm) | |||
| Cargo body | 5800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
| The curb weight | 12300(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 75km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1) Various types of trucks can meet your requirements
2) The world's top technology products are used for key components
3) Sinotruk manual transmission is selected for transmission. No frustration in daily driving. Thanks to Sinotruk Haohan's superb training skills, the engine and gearbox cooperate with each other.
4) More active accelerator response, do not need to step on the accelerator can also feel the power feedback, let car users feel the essence of fun control.
5) In terms of comfort, Haohan N7W has made great efforts to create riding comfort, and the driving space is satisfactory and comfortable enough.
6) The optimized sealing structure has better sealing effect.
7) Intelligent hydraulic control system, avoid misoperation, higher safety and operation efficiency.
8) A variety of box structure and equipment selection
Low fuel consumption, it performs very well for such a large truck
10) The engine is strong enough
11) Competitive price, cost-effective
12) Fast and efficient supply of spare parts to bring you more convenience
13) Fast delivery time, we can accurately and quickly arrange production according to your needs
14) Professional import and export transaction process to make customs clearance more efficient
![]()
